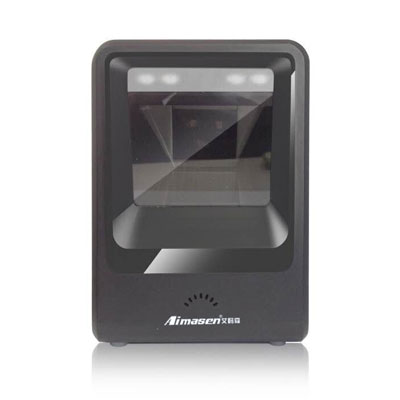

Aimasen AMS-720 立式二維碼掃描小平臺
Aimasen AMS-720立式二維碼掃描小平臺
Fixed Mount On Screen 2D Barcode Reader
產品概覽：
大視野Large field of view
高端、大氣
High-performance
多國語言條碼信息直傳
物體自感應
內置RS232和USB接口
超大掃描窗口
Object auto sense Multiple language barcode message transfer
Build in RS232 and USB interface
產品參數：
| 外觀描述 | |
| 尺寸Dimensions: | 105mm x 146mm x 70mm |
| 重量Weight: | 200g |
| 電壓Voltage: | 5 VDC |
| 電流Current: | 400mA (Operan g) |
| 光源Light Source: Illumination: | 6500K LED |
| 視場角Field of View: | 45° (H) x 35° (V) |
| 偏轉/傾斜/旋轉Roll / Pitch / Yaw: | 360°, ±65°, ±60° |
| 打印對比度Print Contrast: | 25% minimum reflec ve difference |
| 接口支持Interfaces Supported: | USB, RS232 |
| 一維條碼1-D: | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,
Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
|
| 二維條碼2-D: | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,
etc.
|
| 條碼精度Minimum Resolu: | 5 mil Code39 |
| 工作溫度Opera g Temperature: | 0°C to 50°C |
| 存儲溫度Storage Temperature: | -40°C to 70°C |
| 濕度Humidity: | 0% to 95% re |
| 抗震動Shock Speci?cations: | Designed to withstand 1.5m(5’) drops |
| 環境光免疫Ambient Light Immunity: | 100.000 Lux. |
| 5MIL: | 0mm-30mm |
| 13MIL : | 0mm-150mm |
